Description
General Specifications

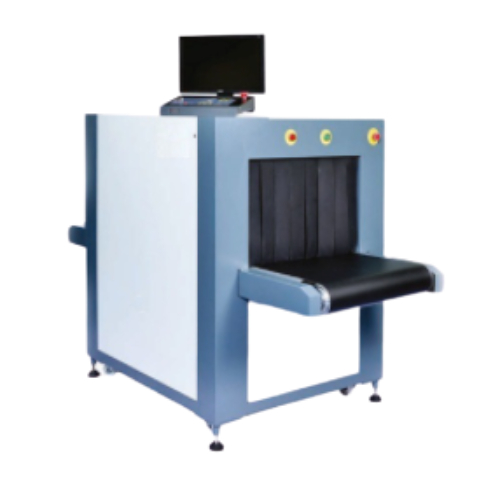

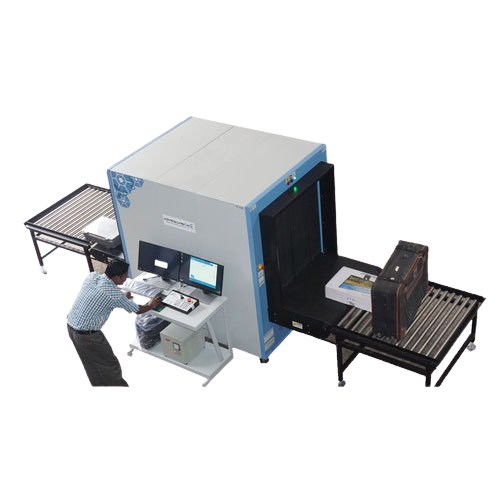

1. Product name: x-ray luggage Scanner
2. Item No.: XJ10080D
3. Color: gray
4. Tunnel size: 1000(W)*800(H)mm
5. Conveyor Max Load: 230 kg
6. Wire Resolution: 38AWG
7. Conveyor Speed: 0.22m/s-0.23m/s
10. Film Safety: For ISO 1600
11. Certificate: CE ISO FCC ROHS
12. Dual x-ray generator
X-RAY GENERATOR
| Orientation: | Downward | Tube Current: | 0.4-0.7mA(adjustable) |
| Anode Voltage: | 100-160KV(adjustable) | Angle: | 60° |
| Generator cooling/working periods: | Sealed oil bath with forced air | Storage Temperature: | -20℃ to 60℃ |
| Operating Temperature: | 0℃ to 45℃ |
Relative Humidity:
|
20 to 95% non-condensing |
| System Power: | 220 VAC (±10%) 50±3HZ | Power wastage: | 1.0 KW (Max) |
| Noise: | <58DB | X-RAY Sensor: | L-shaped array detector, 24bit |
Image Display
- Display: 2* 19” High Resolution LCD Monitor
- Display Resolution: 1280*1024;24 bit/pixel Color
- Contrast Sensitivity: 24 Visible Levels,4096 Gray Level
- Image storage: 100,000 pictures in real-time (can be customized)
- Zoom: 64 Times Enlarge, Whole screen continuous observation
- Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, the mixture in green color
- Edge enhancement: Object contour edge is more distinct
- Super image enhancement: Image detail is more distinct
- High penetration display: Increase the contrast of bright area in the image to make the area that is easy to penetrate appear more clearly
- Low penetration display: Increase the contrast of dark area in the image to make the area that is difficult to penetrate appear more clearly.
- Brightening/dimming: Increase/Decrease brightness of the image
- Image recurrence: Display the previous twenty images and process any one of them
- Image restoration: Restore image to the initial status
- Assist to detect drug and explosive powder
Special features
- Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at the same time
- Safety ray: Ray is transmitted under automatic control, avoiding the error
- One-key shutdown control: Just rotate the key to shut down the machine; it is safe, easy and convenient
- Eagle eye: Capable of expediently observing the magnifying area
- Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
Application
Railway, Highway, Post Office, Logistics, Exhibition Centre, Huge-scale meetings, Activities etc
